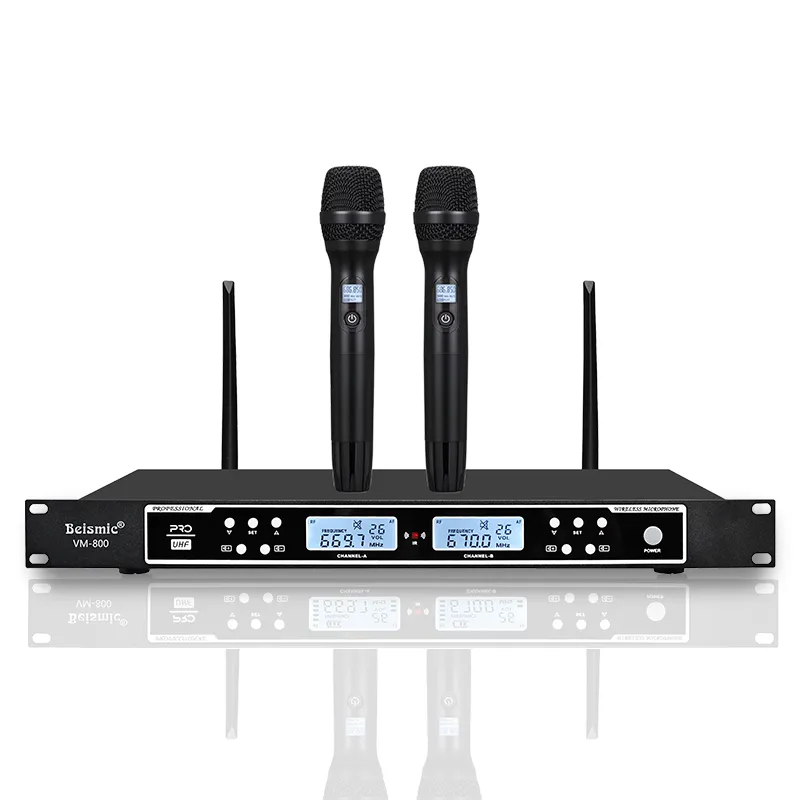

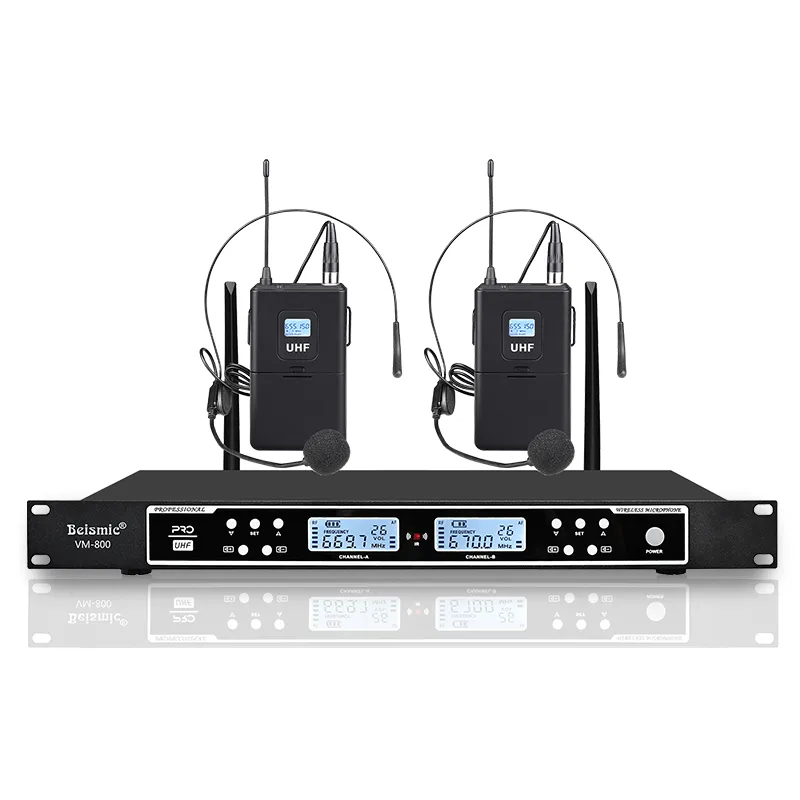

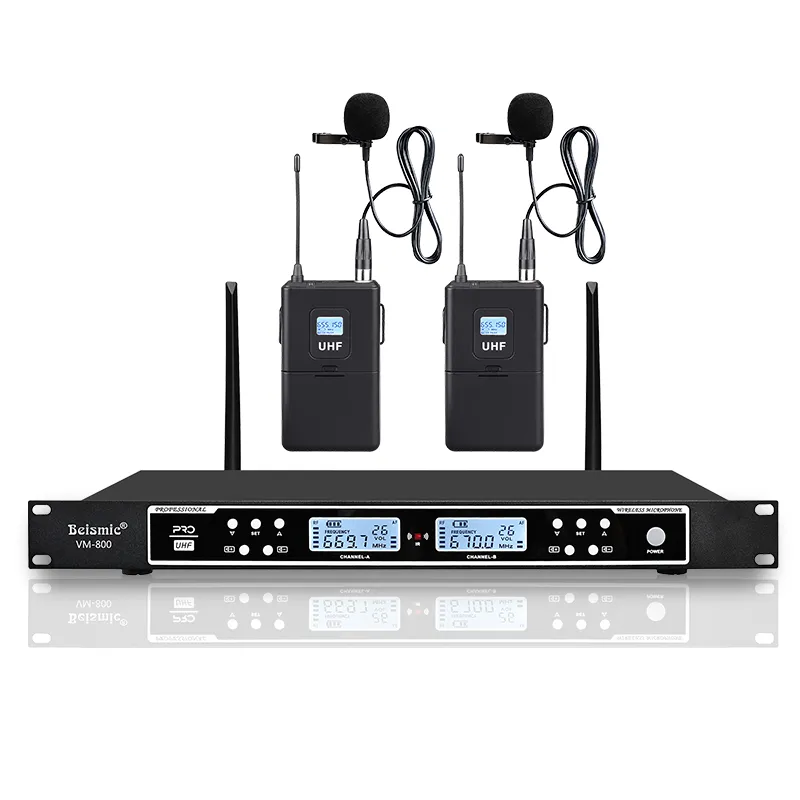

Swipe or scroll to compare handheld, headset, lavalier, and conference configurations. Select an image to inspect the 800 × 800 original.
VM800 Frequency-Adjustable UHF System
VM800 UHF Frequency-Adjustable dual Wireless Microphone
A dual-channel UHF wireless microphone with 200 selectable frequencies and infrared synchronization. Choose a microphone configuration for lectures, meetings, stage performances, outdoor activities, or home karaoke.
View specification summary
Receiver outputs: independent balanced XLR outputs and a mixed 6.35 mm output.
Configuration: choose two handheld microphones, two bodypacks with lavalier microphones, or two bodypacks with headset microphones. Desktop gooseneck microphones are an additional configuration for meetings.
Product Details / VM800
Adjustable frequencies, flexible microphone options
01
200 Selectable Frequencies
The dual-channel VM800 system offers 200 selectable frequencies within the supplied 640–690 MHz range, with infrared synchronization between the receiver and transmitters.
02
Selectable Microphones

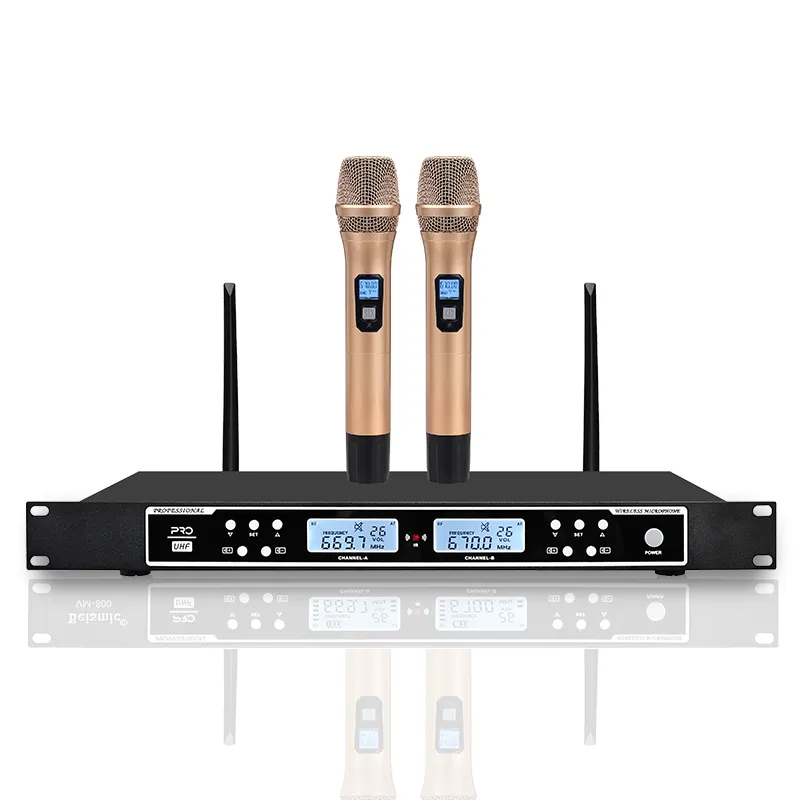

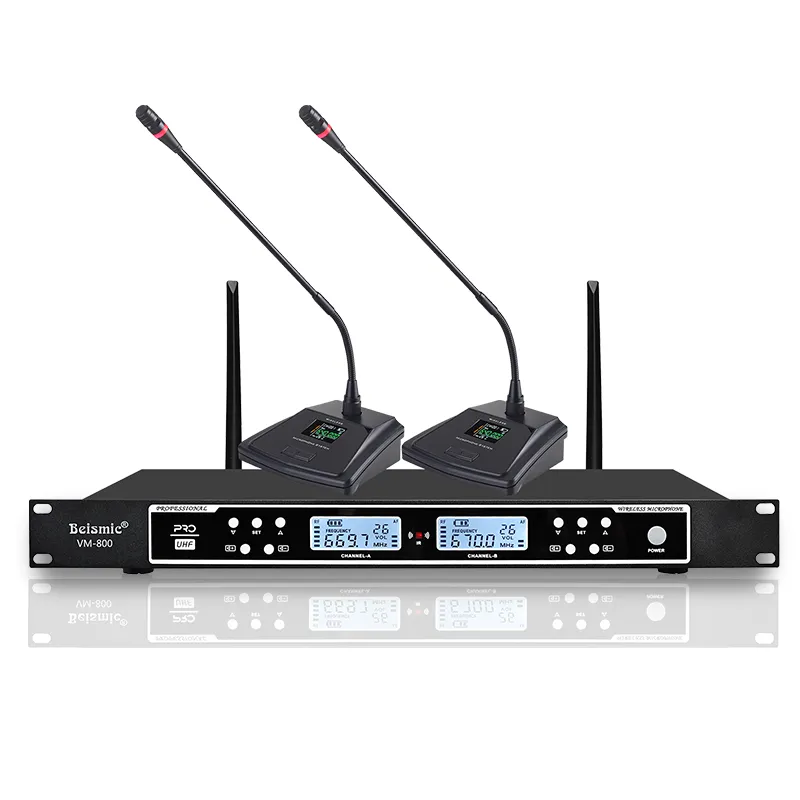

Choose black or gold handheld microphones, lavalier microphones, or black headsets. A desktop gooseneck configuration is also available for meetings.
03
Receiver Connectivity
Independent balanced XLR outputs support separate channel routing, while the mixed 6.35 mm output provides a combined feed for compatible audio equipment.
04
Metal Microphone Housing
The microphones feature metal housings. The system is intended for campus lectures, meetings, outdoor activities, stage performances, and home karaoke.
05
Transmitter Power
RF power: 10 mW
Supply: 2 × 1.5 V AA batteries
Working current: <135 mA
06
Frequency Planning
The supplied range is 640–690 MHz. Custom frequency ranges and frequency points are available on request; include the destination country and intended use in your inquiry.
Specifications & Package
Build the set around your use case
Confirm the destination country, transmitter style, estimated quantity, simultaneous system count, and required compliance documents before ordering.
Receiver and audio specifications
- Frequency range: 640–690 MHz; customization available on request
- Selectable frequencies: 200
- Synchronization: infrared (IR)
- Dynamic range: >100 dB
- Total harmonic distortion: <0.5%
- Frequency response: 20 Hz–18 kHz
- Receiver sensitivity: <−108 dBm @ 20 dB SINAD
- Receiver power: 12 V / 320 mA
- Working distance: 60 m (actual range depends on the environment)
- Receiver dimensions: 48 × 17.5 × 4.5 cm
- Receiver weight: 1,193 g
- Operating temperature: −10°C to 50°C
Standard package
- VM800 receiver × 1
- Selected microphones / transmitters × 2
- Handheld anti-roll rings × 2 when the handheld configuration is selected
- Audio cable × 1
- Power cable × 1
RFQ information
Send the destination country, application, microphone configuration, estimated quantity, simultaneous channel count, target frequency range, delivery schedule, OEM needs, sample request, and required compliance documents.
VM800 / Project Inquiry
Discuss your VM800 configuration
Tell Enping Beismai Electroacouslic Technalogy Co.,Ltd where the system will be used and which transmitter style you need. Include the frequency range, microphone configuration, quantity, and sample requirements so the manufacturer can review your request.
Request a Quote ↗
