Swipe or scroll to compare handheld, headset, and lavalier configurations. Select an image to inspect the 800 × 800 original.
VM500 Frequency-Adjustable UHF System
VM500 UHF Frequency-Adjustable Dual Wireless Microphone
A dual-channel UHF wireless microphone with adjustable frequencies, infrared synchronization, and selectable handheld, headset, or lavalier configurations for education, meetings, live performance, outdoor activities, and home karaoke projects.
View specification summary

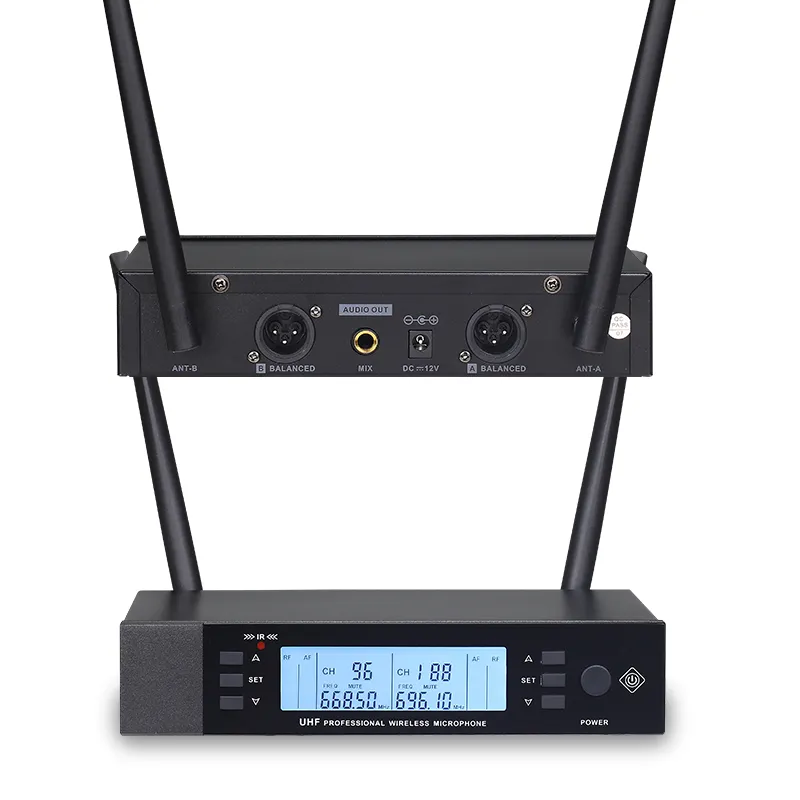

Receiver outputs: two independent balanced XLR outputs plus one mixed 6.35 mm output.
Configuration: choose two handheld transmitters, two bodypacks with lavalier microphones, or two bodypacks with headset microphones. The receiver and handheld microphone housings are metal.
Product Details / VM500
One receiver, three transmitter options
01
Dual-Channel Format
The VM500 receiver is supplied with two selected transmitters for two-person speaking, vocal, or presentation setups.
02
Selectable Microphones

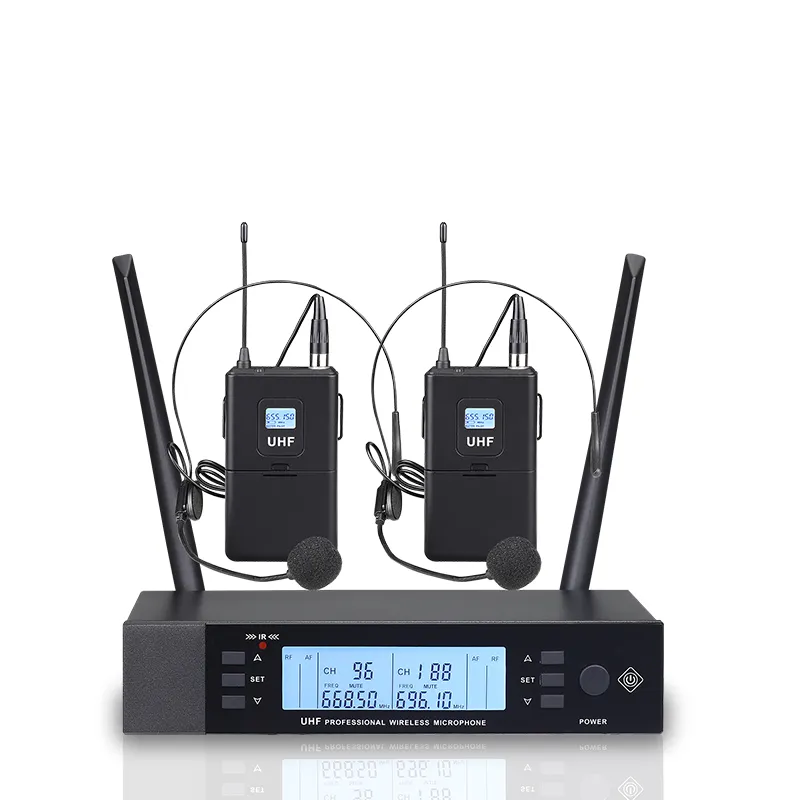

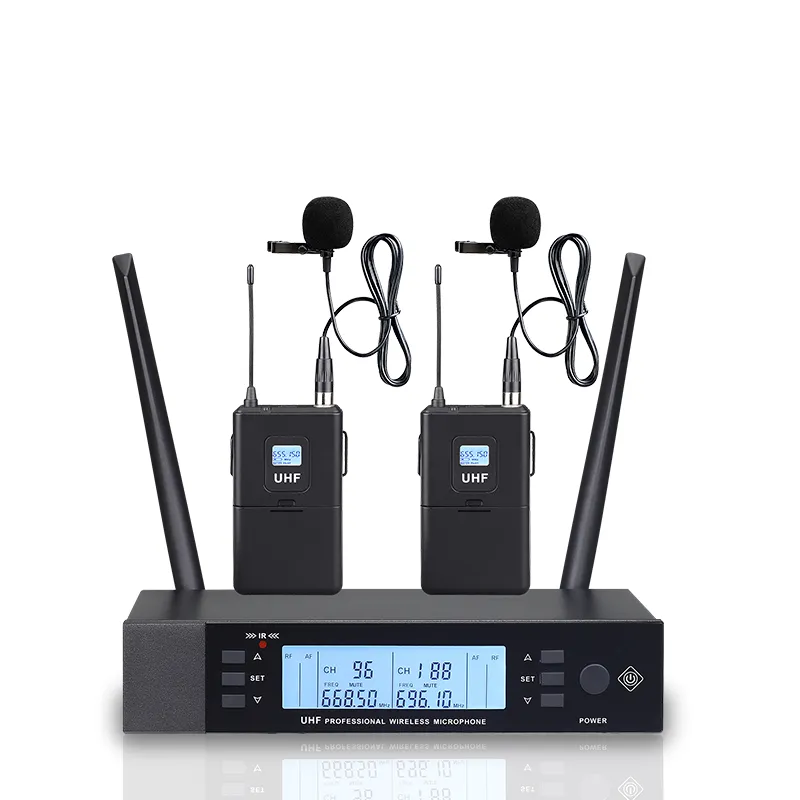

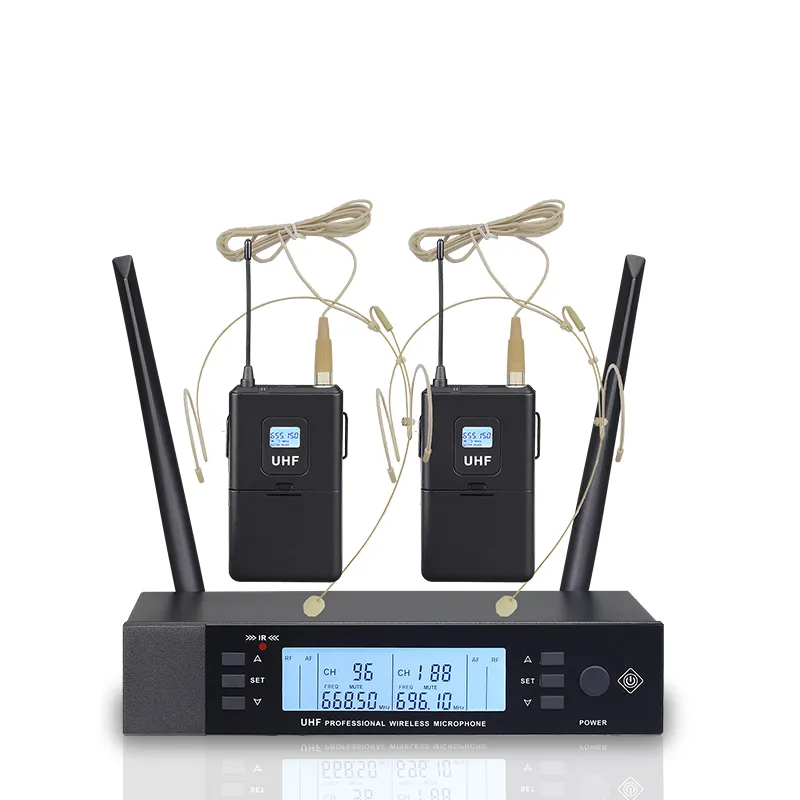

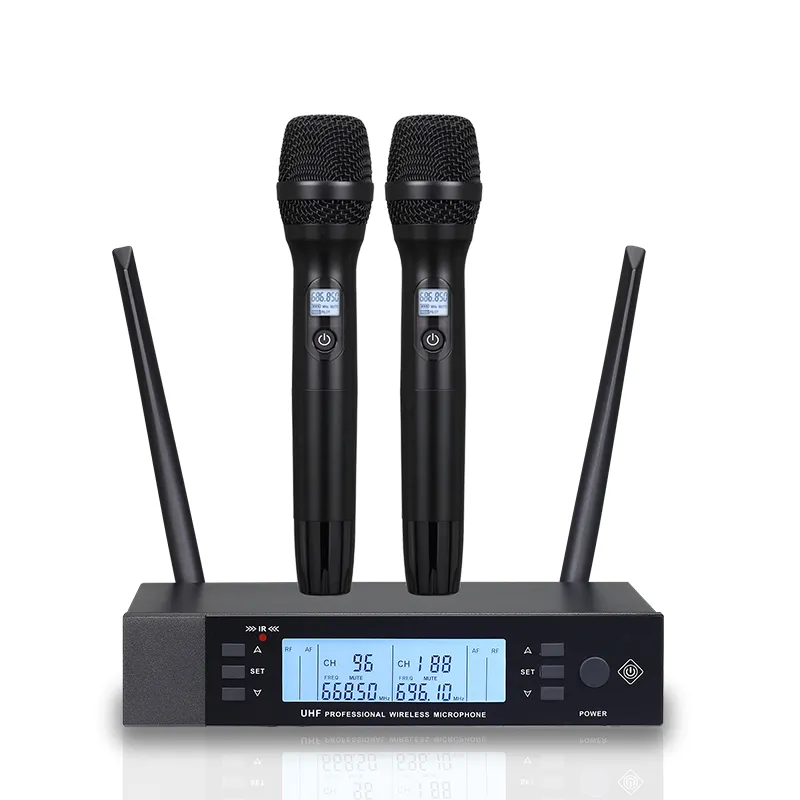

Choose handheld microphones for vocals and karaoke, lavalier microphones for presentations, or headset microphones for hands-free instruction and events.
03
Receiver Connectivity
Independent balanced XLR outputs support separate channel routing, while the mixed 6.35 mm output provides a combined feed for compatible audio equipment.
04
IR Sync & Metal Housings
Infrared synchronization supports transmitter pairing, while the receiver and handheld microphone use metal housings.
05
Transmitter Power
RF power: 10 mW
Supply: 2 × 1.5 V AA batteries
Working current: <135 mA
06
Frequency Planning
The supplied range is 552–620 MHz. Alternative ranges and frequency points can be reviewed for the destination country and project requirements.
Specifications & Package
Build the set around your use case
Confirm the destination country, transmitter style, estimated quantity, simultaneous system count, and required compliance documents before ordering.
Receiver and audio specifications
- Frequency range: 552–620 MHz; alternative ranges and frequency points available on request
- Dynamic range: >100 dB
- Total harmonic distortion: <0.5%
- Frequency response: 20 Hz–18 kHz
- Receiver sensitivity: <−108 dBm @ 20 dB SINAD
- Receiver power: 12 V / 320 mA
- Working distance: 50 m
- Operating temperature: −10°C to 50°C
- Infrared synchronization
- Metal receiver housing; metal handheld microphone housing
Standard package
- VM500 receiver × 1
- Selected microphones / transmitters × 2
- Handheld anti-roll rings × 2 when the handheld configuration is selected
- Audio cable × 1
- Power cable × 1
RFQ information
Send the destination country, application, microphone configuration, estimated quantity, simultaneous channel count, target frequency range, delivery schedule, OEM needs, sample request, and required compliance documents.
VM500 / Project Inquiry
Discuss your VM500 configuration
Tell Enping Beismai Electroacouslic Technalogy Co.,Ltd where the system will be used and which transmitter style you need. We can help clarify the RFQ and coordinate specification, sample, and quotation follow-up.
Request a Quote ↗
