808B UHF FM Wireless Microphone
BEISMIC 808BUHF FM 8-Channel Wireless Microphone
An eight-channel UHF FM wireless microphone for stage performances, campus lectures, conferences, outdoor events, and home karaoke. Choose from the microphone configurations shown and connect through independent balanced XLR outputs or a 6.35 mm mixed output.
View specification summary
Connection: independent balanced XLR outputs and a 6.35 mm mixed output for connection to compatible audio equipment.

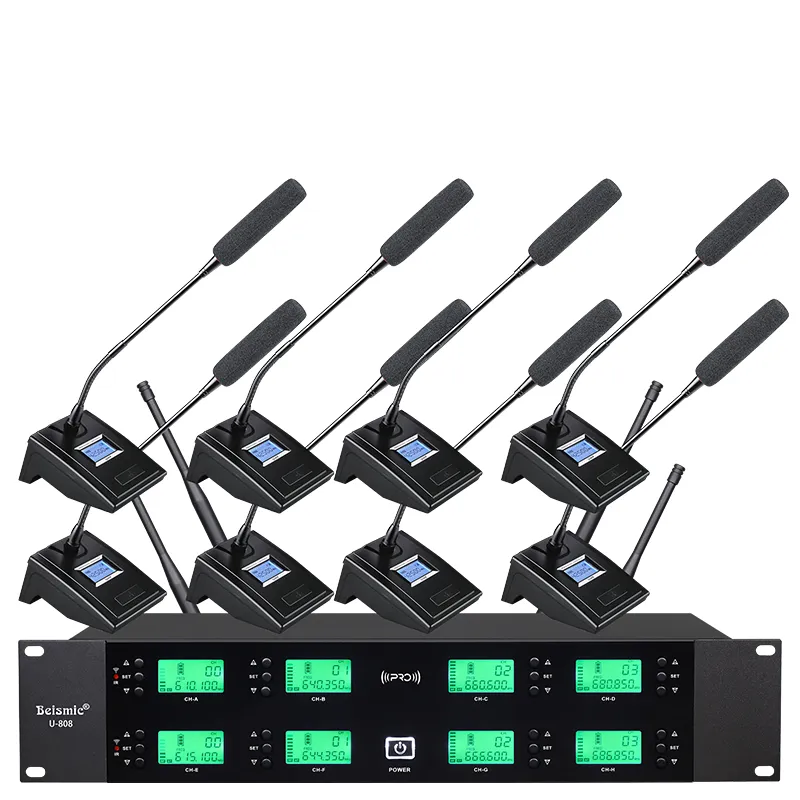

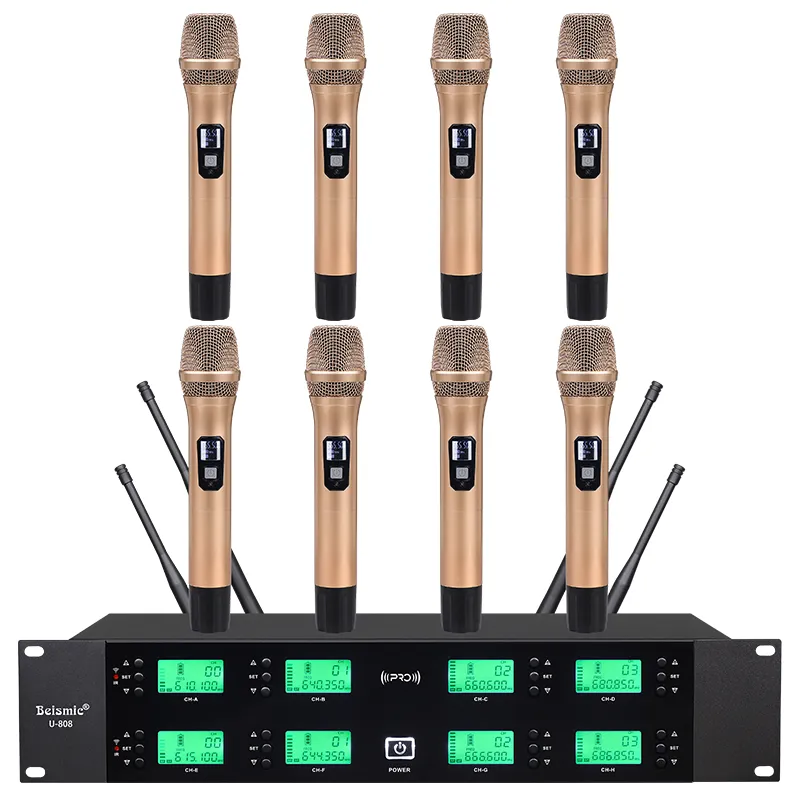

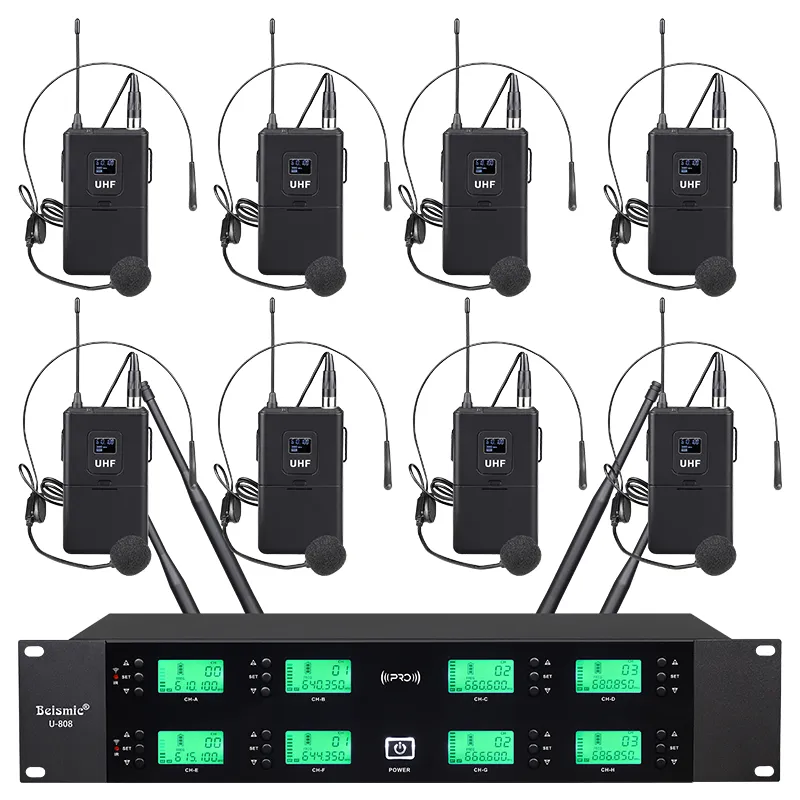

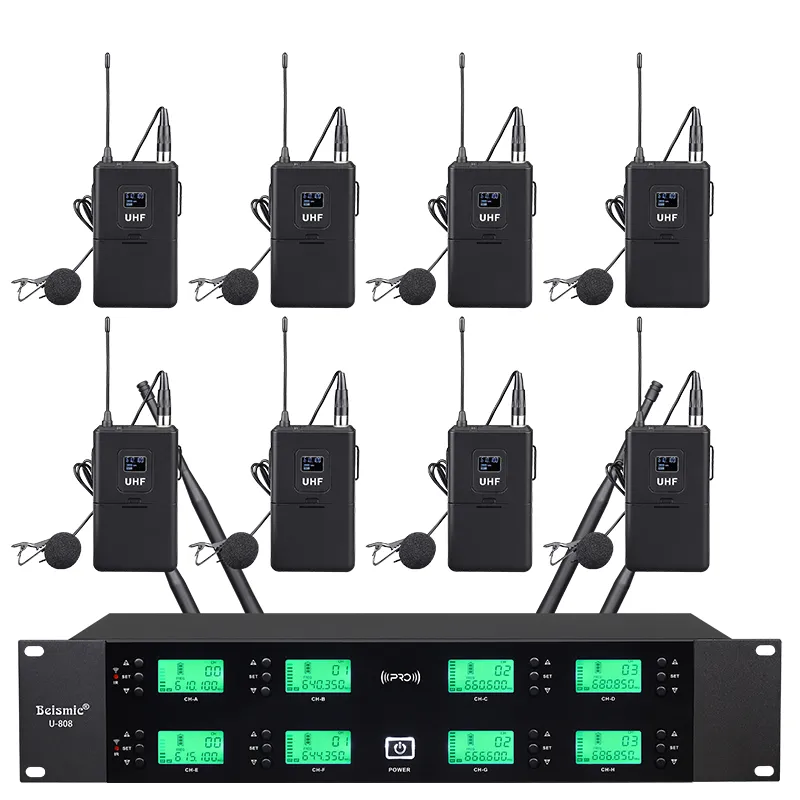

Configuration: eight microphones in the selected configuration. Handheld, gold handheld, conference, headset, and lavalier options are shown; confirm the selected option when ordering.
Product Details / 808B
Eight channels, five configuration options, flexible audio output
01
Eight-Channel System
The 808B combines eight wireless microphone channels in one receiver for multi-microphone speaking and performance setups.
02
Microphone Options
Choose the configuration for your application: handheld, gold handheld, conference, headset, or lavalier microphones, as shown in the supplied product images.
03
XLR & 6.35 mm Outputs
Independent balanced XLR outputs provide separate audio connections, while the 6.35 mm mixed output offers a combined signal connection.
04
UHF Frequency Options
The specified frequency range is 552–620 MHz. Frequency ranges and frequency points can be customized on request; include your destination and requirements in the inquiry.
05
AA Battery Power
Each transmitter uses two 1.5 V AA batteries. Specified transmitter power is 10 mW, with operating current below 135 mA.
06
Application Planning
Use the configuration suited to campus lectures, conferences, stage performances, outdoor events, or home karaoke. The specified 80 m working distance applies to an open area without interference.
Specifications & Package
Choose your microphones and confirm the system requirements
Confirm the microphone configuration, destination, frequency range and points, output connections, and required system quantity before ordering. Manufacturer: Enping Beismai Electroacoustic Technology Co., Ltd.
RF and audio specifications
- Frequency range: 552–620 MHz; customization available on request
- Channels: 8
- Modulation: FM
- Dynamic range: >100 dB
- Total harmonic distortion: <0.5%
- Frequency response: 20 Hz–18 kHz
- Receiver sensitivity: <−108 dBm @ 20 dB SINAD
- Working distance: 80 m in an open area without interference*
- Operating temperature: 10°C–50°C
- Outputs: independent balanced XLR and 6.35 mm mixed output
Power
- Receiver supply / operating current: 12 V / 320 mA
- Transmitter RF power: 10 mW
- Transmitter operating current: <135 mA
- Transmitter power: two 1.5 V AA batteries each
Standard package
- Receiver × 1
- Microphones in the selected configuration × 8
- Power adapter × 1
- 6.35 mm audio cable × 1
- Antennas × 4
- User manual × 1
RFQ information
Send your destination, application, selected microphone configuration, system quantity, required frequency range and points, audio connections, sample needs, and delivery schedule.
*The specified 80 m working distance applies to an open area without interference. Actual coverage depends on RF conditions, obstacles, and equipment placement.
808B / Project Inquiry
Discuss your BEISMIC 808B requirements
Click “Request a Quote” below to contact Enping Beismai Electroacoustic Technology Co., Ltd. directly, discuss your purchasing requirements, confirm product specifications, and inquire about samples and pricing.
